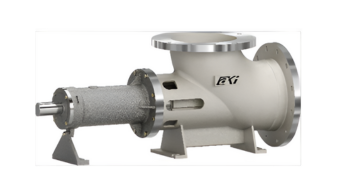

TYPE AFP
-

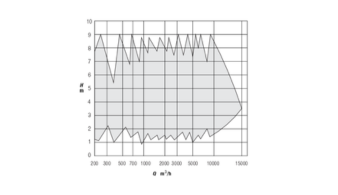

RANGE
- Capacity to 15000 m3/h
- Head 9 m
- Temperature to 180°C
- Pressure to 1600 KPa
-
FEATURES

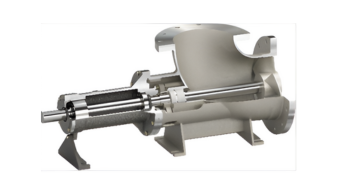

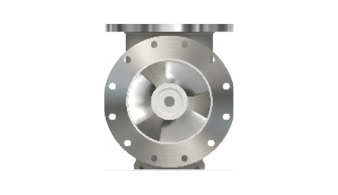

- Axial flow impeller blade designed for optimum efficiency using aerofoils.
- Pump can be used either in end or top suction depending on piping configuration.
- Shaft engineered to give deflection less than 0.05mm
- Grease Lubrication.
- Various arrangements of chemflo mechanical seal can be accommodated.
-
SERVICES
- Hydrocarbon Service.
- Offshore platforms
- Fuel gas purification
- Catalytic cracking
- Boiler feed
- Process transfer
