TYPE ADP API 610 BB2
-

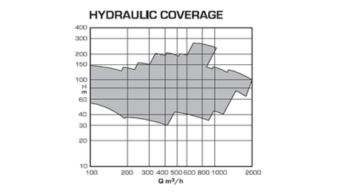

RANGE
- Capacity to 2000 m3/h
- Head 280 m
- Temperature to 280 C.
- Pressure to 5000 KPa
-
FEATURES
- Center Line support - high temperature stability meets API 610 nozzle loading & stiffness criteria
- Double Volute casing design balance radial thrust and thereby minimize shaft deflection
- Double suction impeller design with adequate suction chamber area give rise to low NPSH
- Pressure joints metal to metal face with confined controlled gasket
- Stuffing box cover provided on non drive end allows the removal of rotor without disturbing driver suction & charging piping.
- Seal chamber to API 610 and accomodate all types of sealing arrangement of chemflo mechanical seals.
- Double Suction impeller balance axial thrust and hence increases bearing life
- Maximum shaft deflection less then 0.05 mm at face of the stuffing box ensures long seal and bearing life and low maintenance
-
SERVICES
- Refinery - Process Feed, Column Reflex, Circulation & Process Booster.
- Power Plant- Boiler Feed Booster, Hot Water
