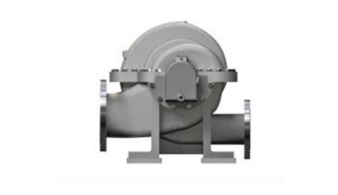

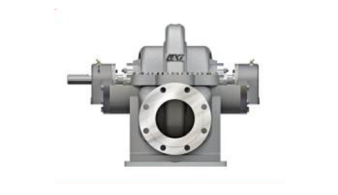

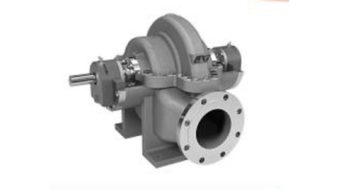

TYPE DSP
-

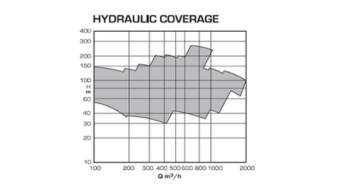

RANGE
- Capacity to 2000 m3/h
- Head 280 m
- Temperature to 200°C
- Pressure to 5000 KPa
-
FEATURES
- Double Volute casing design balance radial thrust and thereby minimize shaft deflation
- Double suction impeller design with adequate suction chamber area give rise to low NPSH
- Axial split design allows the removal or rotor without disturbing driver, suction & discharge piping
- Seal chamber accommodates all types of sealing arrangement of Chemflo mechanical seals.
- Double Suction impeller balance axial thrust and hence increases bearing life
- Maximum shaft deflection less then 0.05 mm at face of the stuffing box ensures long seal and bearing life and low maintenance
-
SERVICES
- Quench water stripper bottoms reboiler circulation cooling water Evaporate condensate
- River Water, Brine Sea Water
- DM Water
- Cooling Towers
