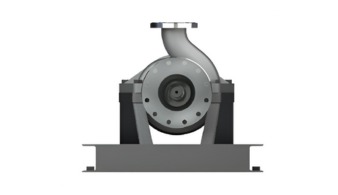

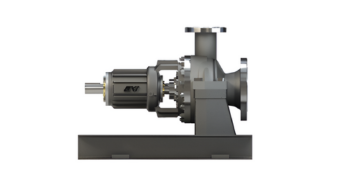

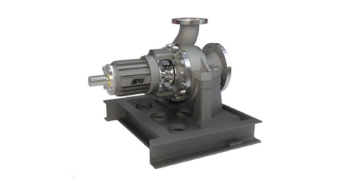

TYPE AKP API 610 OH2
-

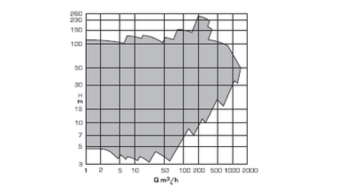

RANGE
- Capacity to 1400 m3/h
- Head 250 m
- Temperature to 425°C
- Pressure to 5000 KPa
-
FEATURES
- Center Line support - high temperature stability meets API 610 nozzle loading & stiffness criteria
- Pressure joints metal to metal face with confined controlled gasket
- 3 inch discharge nozzle and larger has double volute construction minimises radial thrust and more bearing life.
- Back pull out construction for easy maintenance.
- Outboard bearing: Standard duplex angular contact, triplex bearing available for high suction pressure applications.
- Seal chamber to API 610 and accomodate all types of sealing arrangement of Chemflo mechanical seals.
- Renewable impeller and casing wearing ring
- Heavy duty shaft and bearing shaft diameter, bearing span and shaft overhang engineered to give very low deflection.
-
SERVICES
- High Pressure & High Temperature service.
- Hydro Carbon Service.
- Hot oil and heat transfer liquids
- Condensate Boiler Circulation
