TYPE ALP
-

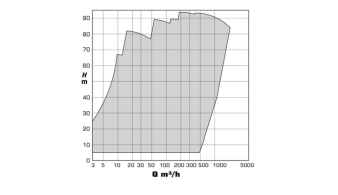

RANGE
- Capacity to 750 m3/h
- Head 60 m
- Temperature to 120°C
- Pressure to 1000 KPa
- Specific Gravity <1.15
- Maximum Solid size 10mm
- Percentage of solid by weight 5 to 20
-
FEATURES
- Construction: One power end for both Metal liner & Rubber liner pump.
- Wear life: Extra thickness provided to enhance wear life at appropriate places.
- External impeller adjustment for maintaining original efficiency.
- Sealing Flexibility: Gland packing, Expeller sealing & Mechanical seal.
-
SERVICES
- Power Utility: Ash slurry, Lime slurry.
- Non Metallic Mining: Clay slurries, Phosphate slurries, Soda ash & Potash.
- Wet process cement: Clay wash, Clay storage kiln feed, Raw grind feed, Screenings.
- Pulp & Paper: Black liquor, Sand slurries, Mill waste sludge, Scrubber water, Fly ash.
