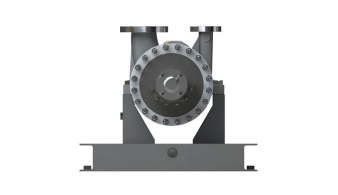

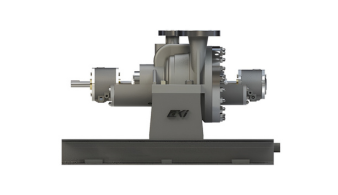

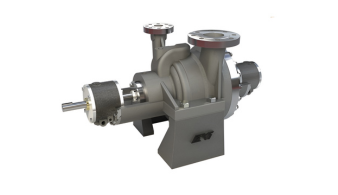

TYPE ATP API 610 BB2
-

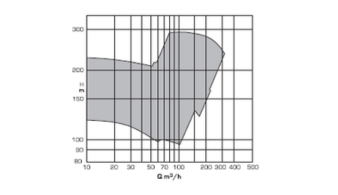

RANGE
- Capacity to 325 m3/h
- Head 280 m
- Temperature to 425°C
- Pressure to 5000 KPa
-
FEATURES
- Center Line support - high temperature stability meets API 610 nozzle loading & stiffness criteria
- Opposed impeller arrangement & renewable wearing ring full balance axial thrust enhance bearing life
- Impeller keyed and positioned on shaft by threaded sleeve to restrict against axial movement
- Impeller are mounted on shaft with vane tips staggered for reduced pressure pulsations
- Stuffing box cover provided on non drive end allows the removal of rotor without disturbing driver suction & discharge piping.
- Seal chamber to API 610 and accommodate all types of sealing arrangement of chemflo mechanical seals.
- Pressure joints metal to metal face with confined controlled gasket
- Maximum shaft deflection less then 0.05 mm at face of the stuffing box ensures long seal and bearing life and low maintenance
-
SERVICES
- High Pressure & High Temperature service.
- Hydro Carbon Service.
- Hot oil and heat transfer liquids
- Condensate Boiler Circulation
