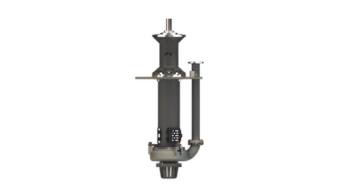

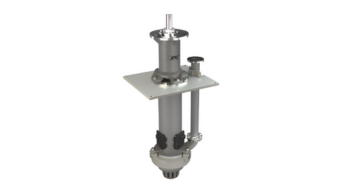

TYPE AVP
-

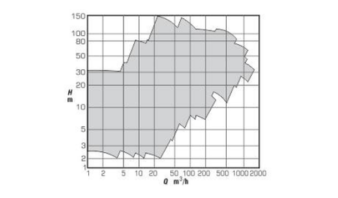

RANGE
- Capacity to 450 m3/h
- Head 35 m
- Discharge size: 40mm to 200mm
- Max. Submergence : 2000mm
-
FEATURES
- Double suction impeller balances axial thrust and hence increase bearing life
- Heavy duty cantilever shaft to yield low deflection
- Heavy duty roller bearing on drive end and two row taper roller bearing at lower end of bearing housing.
- Bearing assembly dimensionally interchangeable between metal & elastomer
- Impeller adjusted axially by means of shims underneath bearing housing feet.
-
SERVICES
- Mining & ore processing
- Coal Processing
- Power station application
- Industrial application such as slag & sludge removal, process Liquor recirculation, scrubber service.
